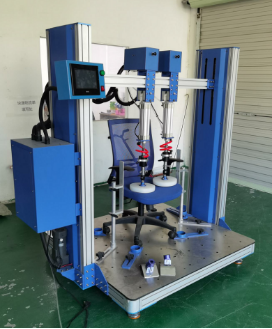

SL-T01 Chair Armrest Test Machine
Product Introduction
This test machine performs armrest horizontal static tests and durability tests, as well as armrest vertical static and durability tests based on BIFMA X5.1 and BIFMA X5.4 standards.
Test Standards
GB/T 10357.3-2013 4.6 & 4.9; ANSI/BIFMA X5.1-2017 10.4, 12, 12, 20; EN1728-2012; EN 581; ISO 7173-1989
Technical Parameters
| Parameter | Specification |
|---|
| Capacity force | 200kg |
| Cylinder Stroke | 500mm |
| Test speed | 10-30 times/min (adjustable) |
| Armrest Height | 550-950mm |
| Test times | 1-999999 times |
| Control Module | PLC and LCD touch screen |
| Control pressure mode | servo proportional valve control |
| Air source | ≥0.5MPa |
| Power supply | 1∮ AC 220V |
Features
- The controller adopts test software independently developed by the company, which can realize automatic shutdown of preset test times
- With emergency shutdown protection function, simple operation, reliable and stable operation
- With stop/power memory function, equipment short circuit protection function and other design, to ensure the safety of users
Test Procedures
BIFMA X5.1 Clause 17 (Front Load Test/Side Load Test)

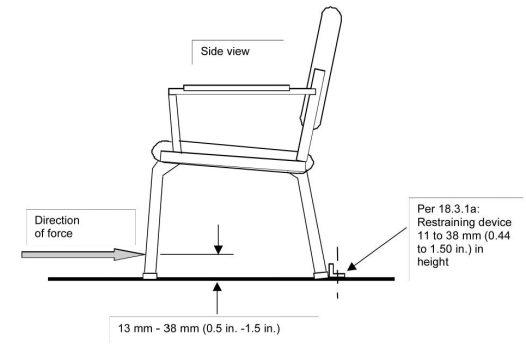

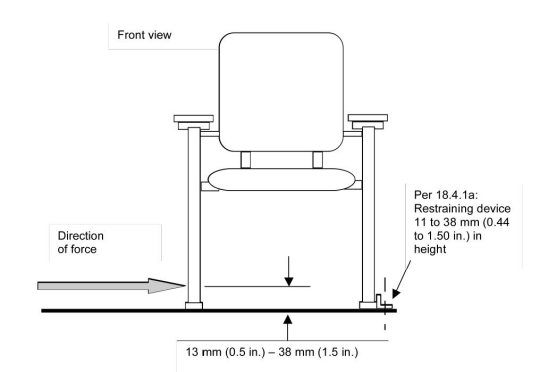

Functional Load Test/Proof Load Test: A force of 334 N (75 lbf.) shall be applied once to each front leg individually for one (1) minute. Remove the force.
Proof Load Test: Similar with functional load test, but the force is 503 N (113 lbf)
BIFMA X5.1 Clause 12 (Arm Strength Test - Vertical - Static)

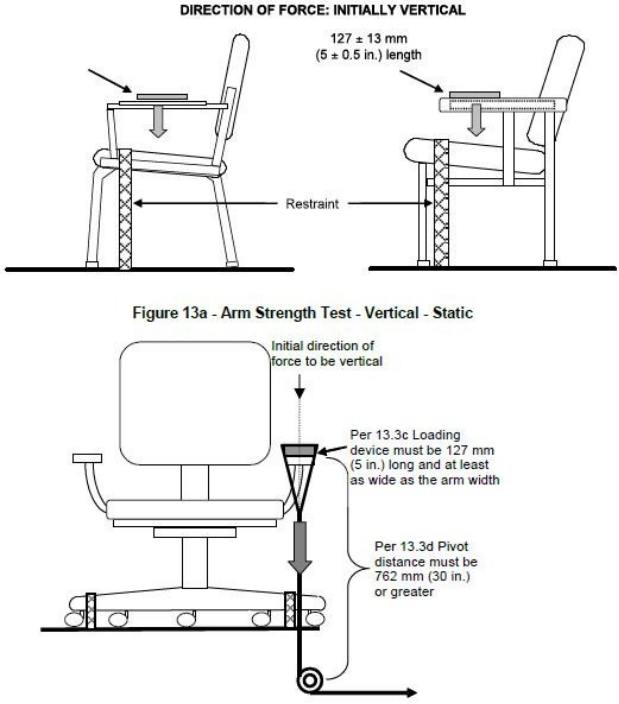

Functional Load: A force of 750 N (169 lbf.) shall be applied for one (1) minute. Remove the force.
Proof Load: A force of 1125 N (253 lbf.) shall be applied for one (1) minute. Remove the force.
BIFMA X5.1 Clause 13 (Arm Strength Test - Horizontal - Static)
Functional Load: A force of 445 N (100 lbf.) shall be applied for one (1) minute in the outward direction. Remove the force.

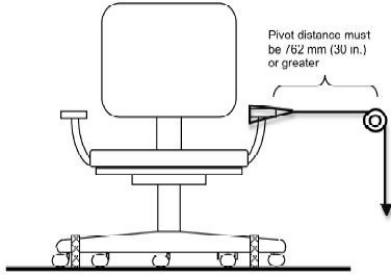

Proof Load: A force of 667 N (150 lbf.) shall be applied for one (1) minute in the outward direction. Remove the force.
BIFMA X5.1 Clause 20 (Arm Durability Test - Cyclic)

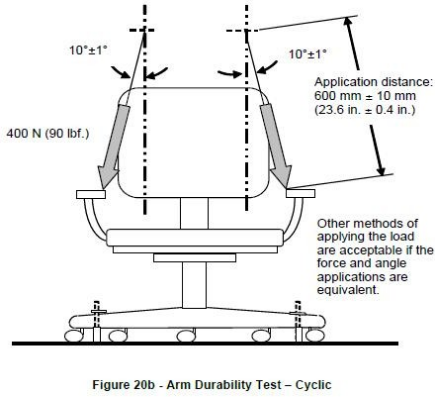

Test Procedure: Simultaneously apply a force of 400 N (90 lbf.) to each arm initially at a 10 degrees ± 1 degree angle as shown in Figure 20b. The arm loading device must follow the arm (allow fore and aft, side-to-side and rotational movement) as it deflects or pivots. If using a test device similar to that shown in Figure 20b, the load application distance must initially be the length specified in the figure. Other methods of applying the load are acceptable if the force and angle applications are equivalent. The force shall be applied and removed for 60,000 cycles at a rate between 10 and 30 cycles per minute.
