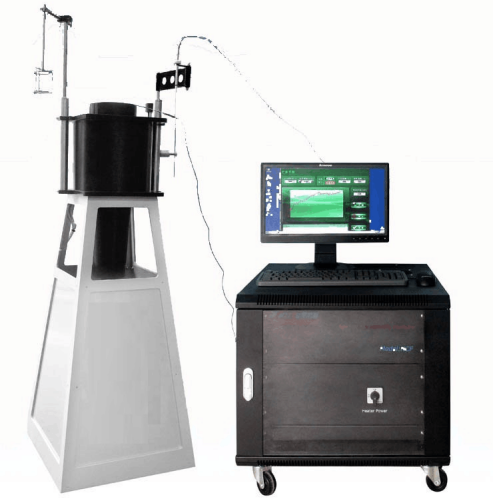

ISO 1182 Non Combustibility Test Apparatus
Non-Combustibility Tester
Performance Characteristics
- Measures incombustibility of uniform and non-uniform building materials
- Evaluates rising furnace temperature, mass loss, and specimen ignition
- Single Zone Furnace operates up to 900℃ with Kanthal Ribbon Heater
- Precise 750±5℃ temperature control via PID and Power controller
- Stabilized voltage supply for rapid temperature stabilization
- Three thermocouples monitor furnace, specimen center, and surface temperatures
- 360° rotatable, height-adjustable thermocouple scanning device
- Inner furnace thermocouple for temperature calibration
Technical Parameters
| Component |
Specification |
| Thermocouples |
OMEGA brand, 0.3mm wire diameter, 1.5mm outer diameter |
| Ribbon Heater |
Kanthal brand (Switzerland) |
| Furnace Temperature |
750°C |
| Tube Dimensions |
75mm inner diameter * 150mm height * 10mm wall thickness |
Key Components
- Airflow stabilizer: 500mm height truncated cone (75mm top diameter, 10mm bottom opening)
- Specimen holder: φ1.5mm steel wire, 46mm inner diameter, 57mm height
Complete Equipment Package
- Oven with fume hood
- Stand and sample insertion device
- Sample holders (2+ for solids, 2+ for bulk materials)
- Temperature control and measuring system
- Data capture and processing software
All components meet LST EN ISO 1182:2020 requirements.
Compliance Standards
BS 476-4
ISO 1182 2020
EN 13501
IMO FTPC Part 1
Dimensions
| Component |
Dimensions (W * D * H) |
| Furnace |
400 * 400 * 1200 mm |
| Control Unit |
530 * 270 * 280 mm |
Installation Requirements
- Electrical: 110V AC 60Hz / 230V AC 50Hz, 10A
- Ambient Temperature: 10°C to 35°C operating range
Standard Accessories
- Computer system with software
- OMEGA brand thermocouples
- Kanthal brand ribbon heater (Switzerland)
- Electric furnace wire
Applications
- Classification of building products into Euroclass A1 and A2 fire resistance ratings
- Testing uniform and non-uniform building materials for incombustibility
- Quality control for construction material manufacturers
- Regulatory compliance testing for building and construction sectors
- Research and development of new building materials
- Fire safety assessment of flooring materials
Frequently Asked Questions
Q1: What is this equipment used for?
A1: This apparatus determines whether a building material is non-combustible by measuring its reaction when exposed to 750°C in a furnace. Results are used to classify products into Euroclass A1 and A2 fire ratings.
Q2: What standards does it comply with?
A2: It complies with ISO 1182:2020, BS 476-4, EN 13501, and IMO FTPC Part 1. All components meet LST EN ISO 1182:2020 requirements.
Q3: What materials can be tested?
A3: Both uniform and non-uniform building materials, including floorings, can be tested. The apparatus accommodates specimens of Φ45mm × 50±3mm.
Q4: How does the test work?
A4: A prepared specimen is inserted into a furnace stabilized at 750±5°C. The system then monitors furnace temperature rise, mass loss, and ignition over the test duration using three thermocouples.
Q5: What parameters does it measure?
A5: It measures rising furnace temperature, mass loss of the specimen, and whether ignition occurs. The system also tracks specimen center and surface temperatures during testing.
Q6: What industries use this equipment?
B6: Building material manufacturers, construction material testing laboratories, fire safety research institutions, and regulatory compliance agencies use this apparatus for product classification and quality control.
